12. History of NN architectures in NLP: CNNs, LSTMs

Explanations, formulas, visualisations:

• Lena Voita’s blog: Text Classification
• Chris Olah, Understanding LSTM Networks
• Goldberg 9, 10, 11
• Eisenstein 3.4, 6
• Jurafsky-Martin 8

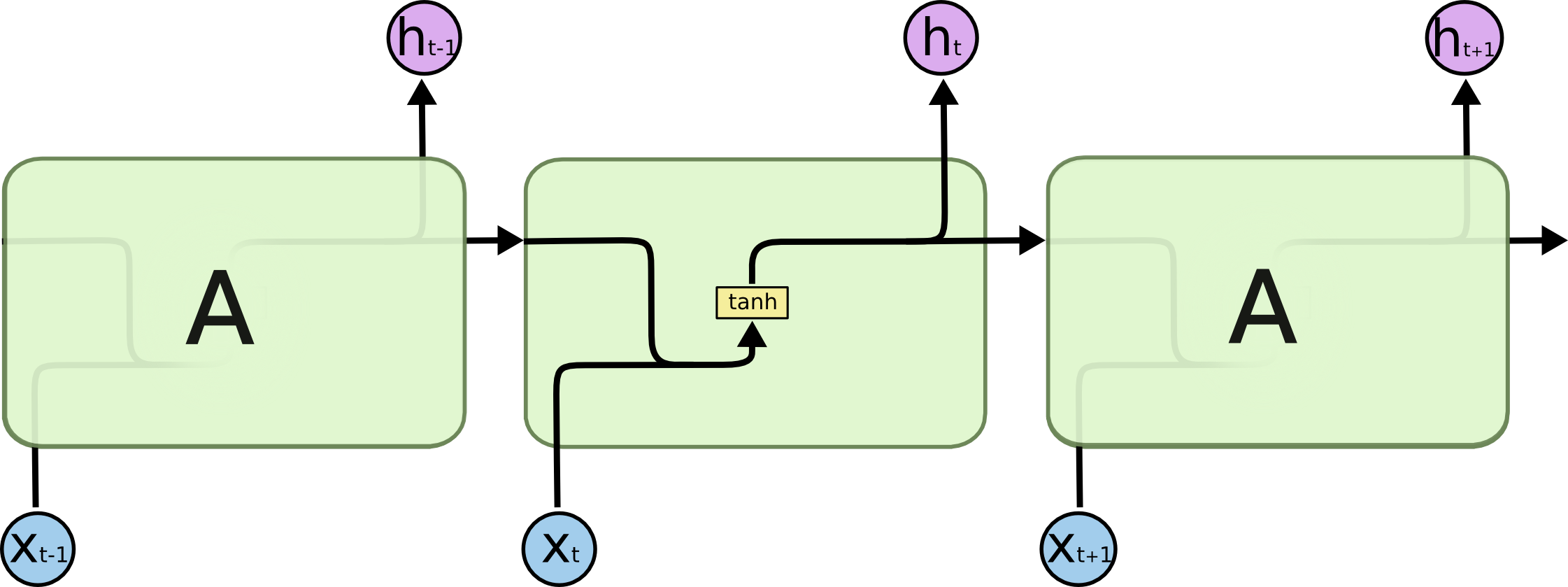

RNNs

Source: Understanding LSTM Networks

• RNNs are designed to process sequences, when the order of symbols is important
• Hidden layers of RNNs model the whole sequence, each token in the input is represented with a hidden state
• The hidden states can be seen as layers of a deep network (often called units) connected via the RNN abstraction
• The RNN abstraction: current state = current input + previous state
• By design uni-directional, in NLP mostly used as bi-directional: concatenation of the left-to-right and right-to-left pass
• Classifiers vs. transducers: if an RNN outputs a symbol or a decision only at the end of the sequence, it can be seen as a classifier (also called acceptor), if it outputs a symbol at each step, it is a transducer <- the terminology comes from finite-state automata
• Varied length: RNNs are the only architecture that can deal with varied sequence length!

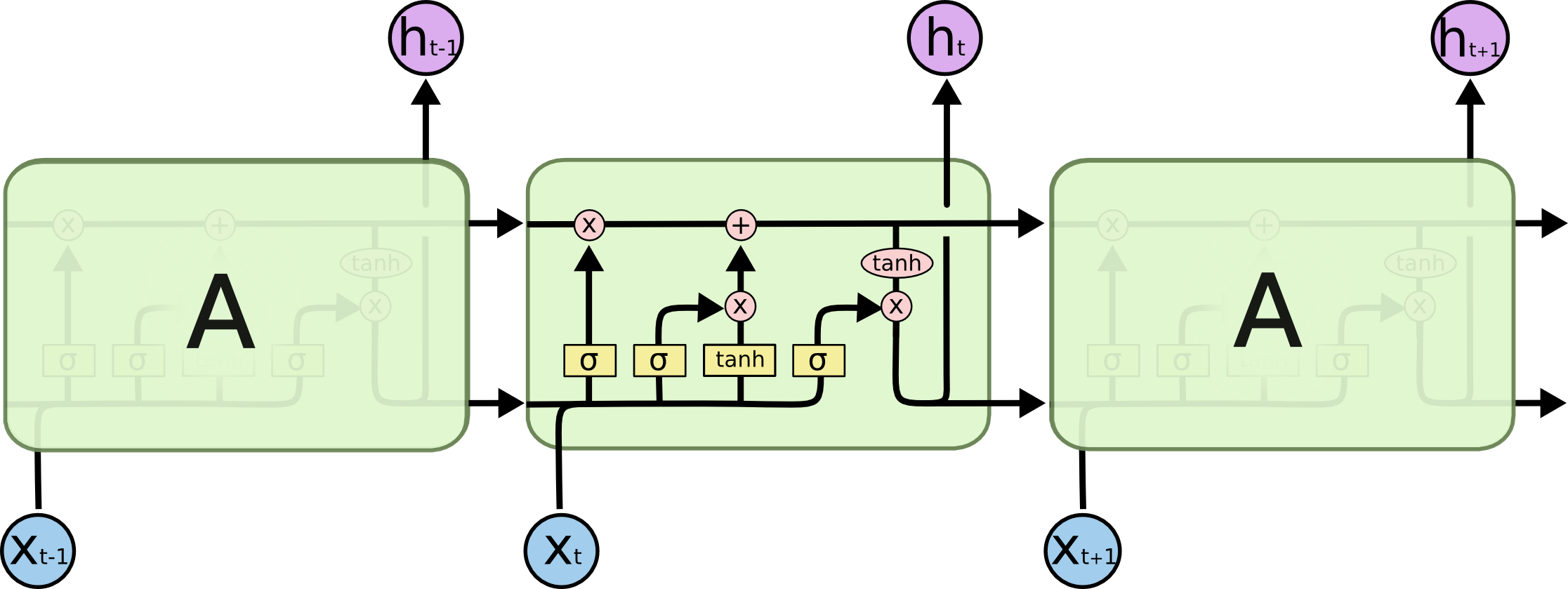

LSTMs are gated RNNs

Source: Understanding LSTM Networks

• Gating is invented to control how much history is allowed to pass to the next state, gated RNN units have more structure than simple RNN unit
• LSTM is a kind of gating: each state consists of a hidden and a memory (also called context) component
• Hidden component is the main unit, memory is additional unit that helps gating
• Gates: input, forget, output

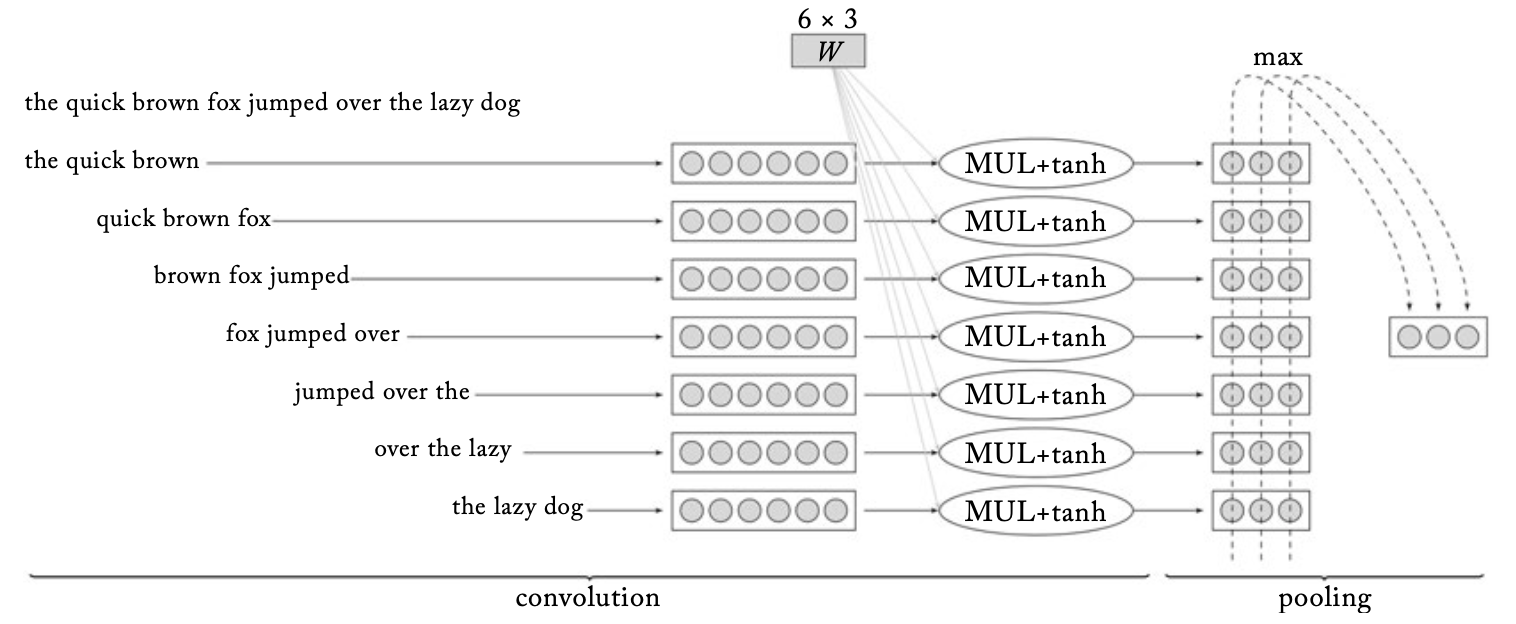

CNNs as feature extractors

Source: A Primer on Neural Network Models for Natural Language Processing

• designed to identify relevant input features
• specifically in NLP: relevant segments of text are found with 1D convolutions
• convolution produces one vector representation for each n-gram
• each filter is responsible for one cell in the vector, dimensionality of n-gram vector is the number of filters
• n-gram representations are then pooled into a single vector representing the whole text
• this vector is input to a classifier
• n-gram size ≠ filter size!



NLP tasks: token level vs. sentence level

• Typically CNNs are better suited for the sentence-level tasks (e.g. spam filtering, sentiment), while LSTMs for token level tasks (e.g. NER, POS tagging)
• LSTMs are also often used for sentence level tasks: the last state is a representation of the whole sequence
• The use of CNNs for token-level tasks is possible but not common

---
